Degasser Vacuum Pumps & Controller Equivalents For HPLC And Other Fluidic Systems
We have a large supply of vacuum pumps, chambers and other parts that can be used as replacements for degassers for HPLC systems from Agilent, Waters, Shimadzu, Thermo, etc.
In some cases the vacuum part number may be different to what is in your system. The following is a vacuum pump equivalent table to help match the one you have in your system.

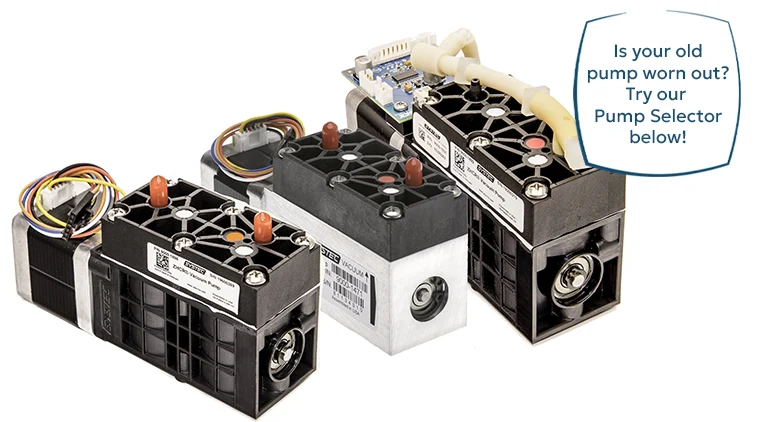

Degasser vacuum pump selector list
| Current vacuum pump P/N | Mounting | Type | Recommended replacement pump P/N | Vacuum setpoint (mmHg) | Control board |
|---|---|---|---|---|---|
| 228-54504 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 228-63035 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 700001352 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-0875 | Bottom | Analytical | 9000-1471 or 9000-1892, with adapters** | Set in PCB | Required |
| 9000-0922 | Bottom | Analytical | 9000-1471 | Set in PCB | Required |
| 9000-1023 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-1067 | Bottom | Analytical | 9000-1471 or 9000-1892, with adapters** | Set in PCB | Required |
| 9000-1130 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-1295 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-1297 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-1471 | Bottom | Analytical | 9000-1471 or 9000-1892 | Set in PCB | Required |
| 9000-1472 | Bottom | Prep | 9000-1896 | Set in PCB | Required |
| 9000-1566 | Side | Analytical | 9000-2061 | Set in PCB | Required |
| 9000-1585* | Bottom | Analytical | 9000-1585* | 120 | Integrated |
| 9000-1623 | Bottom | Analytical | 9000-1471 | Set in PCB | Required |
| 9000-1682 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-1718 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-1892 | Bottom | Analytical | 9000-1892 | Set in PCB | Required |
| 9000-1893 | Side | Analytical | 9000-2061 | Set in PCB | Required |
| 9000-1896 | Bottom | Prep | 9000-1896 | Set in PCB | Required |
| 9000-1897 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-1920 | Bottom | Analytical | 9000-1920 | 50 | Integrated |
| 9000-1921 | Side | Analytical | 9000-1921 | 50 | Integrated |
| 9000-1922 | Bottom | Prep | 9000-1922 | 80 | Integrated |
| 9000-1923 | Side | Prep | 9000-1923 | 80 | Integrated |
| 9000-1926 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-1941 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-1997 | Side | Prep | 9000-1896 | Set in PCB | Required |
| 9000-2033 | Side | Prep | 9000-1897 | Set in PCB | Required |
| 9000-2061 | Side | Analytical | 9000-2061 | Set in PCB | Required |
| 9000-2082 | Bottom | Prep | 9000-2082 | 120 | Integrated |
| 9000-2083 | Side | Prep | 9000-2083 | 120 | Integrated |
| 9000-2088 | Bottom | Analytical | 9000-2088 | Set in PCB | Required |
| 9000-2089 | Side | Analytical | 9000-2089 | Set in PCB | Required |
| 9000-2090 | Bottom | Analytical | 9000-2090 | Variable | Integrated |
| 9000-2091 | Side | Analytical | 9000-2091 | Variable | Integrated |
| G1311-60007 | Side | Prep | 9000-1897 | Set in PCB | Required |
| *Single stage vacuum pump. **Two straight tubing reducers from 1/8″ to 1/16″ are also required. | |||||
