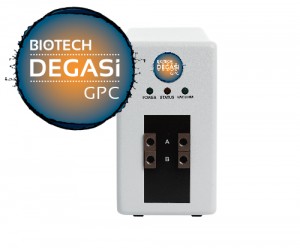

BIOTECH DEGASI GPC DEGASSER

The right choice…

DEGASi® GPC is the right choice of degasser if you are working with 100% organic solvents in your fluidic line. Some examples of application areas where this degasser is successfully used are GPC (Gel Permeation Chromatography) and Normal Phase Chromatography.

What’s unique

DEGASi® GPC uses the same 480 μl Systec AF™ degassing membrane as used in DEGASi® Classic. The main difference compared with the DEGASi® Classic is that we use a stented version of the vacuum chamber in the DEGASi® GPC.
The stent is a short piece of a stainless steel tube placed inside the ends of the degassing membrane. In order to make the internal ferrule in the bulkhead get a better grip. This solution makes an even more secure internal connection when working with 100% organic solvents in the fluidic line.

With the highly-permeable Systec AF™ membrane, an internal degasser chamber volume of only 480 μl is sufficient to give you excellent degassing efficiency up to flow rates of approximately 3 ml/min. The time the liquid spends inside the vacuum chamber is correlated to the degassing efficiency, so with a higher flow rate, the degassing efficiency will be lowered. In many cases, the 480 μl vacuum chamber can be used at 5 ml/min with sufficient degassing.

Clear
Description
  • Ultra-high degassing efficiency
  • Fits every system
  • Long life expectancy – 5+ years continuous (24/7) running capacity
  • Easy to prime
  • Extremely quiet
  • Closed loop vacuum control means constant vacuum (variable RPM)
  • ZHCR®  (Zero Hysteresis/Constant Run) patented control eliminates baseline fluctuations
  • Excellent chemical compatibility flow path
  • Continuous vacuum system monitoring to ensure optimum operating conditions are maintained
  • Advanced error and leak checking functions
  • 2-pin vacuum level validation output
  • CE & RoHS compliant





GENERAL SPECIFICATIONS

Recommended Flow Rate:
3 ml/min (Per Channel)
Wetted Materials:
Systec AF™, PEEK, Glass-filled PTFE
Degassing Channel Tubing:
Systec AF™ (0.045’’ ID)
Liquid Connection:
1/4’’-28 UNF threaded flat-bottom port
Degassing Channel Pressure Rating:
70 PSI (testing pressure)
Size (L x H x B):
263 x 131 x 73 mm



POWER REQUIREMENT USING SUPPLIED AC ADAPTER

100 to 240 VAC (±10 %), 1 A,
50 to 60 Hz (±3 Hz)

Wall Sockets: 4 supplied with AC Adapter, interchangeable: North America/Japan, U.K., Continental Europe, Australia

Additional Information
Internal Volume

480

Channels

2, 3, 4, 5, 6
