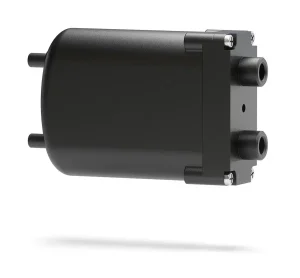

Silicone Degassing For Life Science Applications
Dissolved gas in system fluids can lead to bubble formation that inhibits peak system performance. Changes in pressure, temperature, or reagent mixing cause bubbles to outgas into the flow path, creating inaccurate aspiration and dispense functions as well as disrupting optical detection.
Additional Information
Additional Information
Parameter Value
Product Alias DGC-020-153881
Product Number 115388100001
Membrane Material Vinyl methyl silicone (VMQ)
Best Suited For Water & aqueous chemistries
Other Wetted Materials Ethylene propylene diene monomer (EPDM); Polyphenylene sulfide (PPS)
Recommended Liquid Connection Male 1/4-28UNF nut preferably with a softer ETFE ferrule
Recommended Vacuum Connection Low gas permeability 3 mm ID elastomeric tube
Recommended Degassing Vacuum 16.7
Recommended Min/Max Liquid Flow Rate 5 / 20 mL/min; ~ 80 / 330 μL/sec
Pressure Drop
(Water 25°C, Maximum Operating Flow Rate) < 20 kPa
RoHS / REACH Compliance YES
