Sunbridge PFP-R
Ideal For Both Short- And Long-Chain PFAS Analysis
The SunBridge PFP-R (3 µm) column introduces enhanced selectivity for fluorinated compounds (including both short- and long-chain PFAS), aromatic isomers, and polar analytes, offering unique retention characteristics that complement traditional C18 phases.
- Column focusing — peak shape maintained
- Temperature screening — impurity separation
- LOD ≤ 0.05 μg/kg for all target PFAS

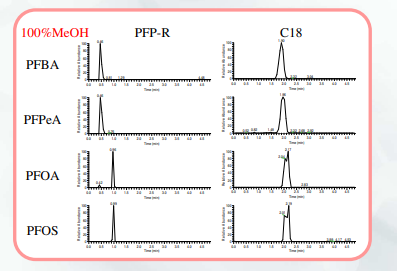

- Clear separation ― Branched and linear PFAS
The Redesigned PFP for Reversed-phase
PFP-R: Redesigned PFP For Reversed Phase Chromatography

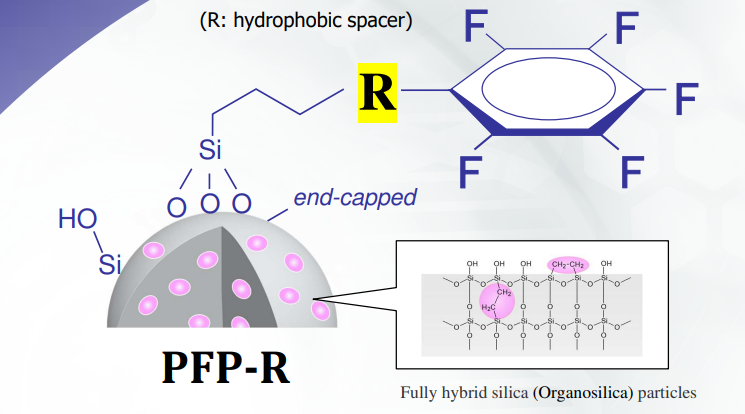

Features of the PFP-R Stationary Phase
- Dipole–dipole interactions based on the strong electron-withdrawing
- property of fluorine
- π/π donor–acceptor interactions (strong recognition of aromatic rings)
- Tuned to provide moderate (rather than strong) retention for cations

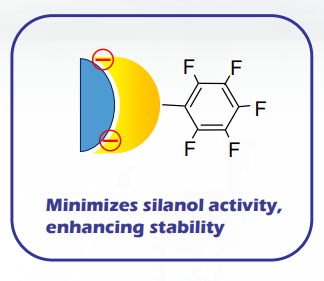

- PFP designed with emphasis on stability as a reversed-phase

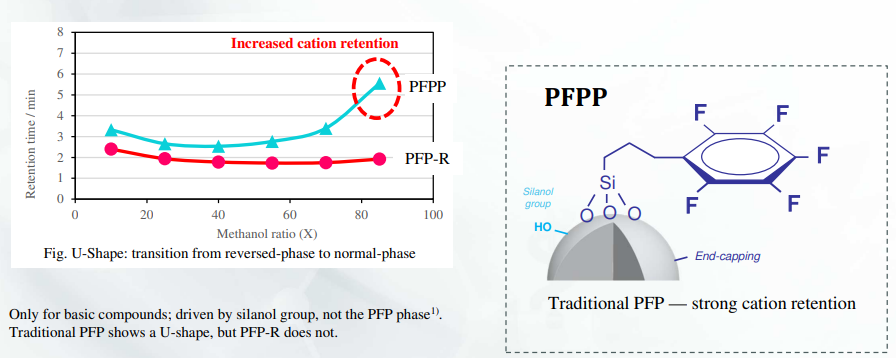

stationary phase - Note: The so-called “HILIC-like behavior” often attributed to PFP
columns (see figure below) does not occur.
Specifications
| Stationary Phase | Particle size | Surface area | Pore diameter | Carbon content | End-capping | Available pH range | USP Code |
| SunBridge PFP-R | 3μm | 190 m2 /g3 | 15 nm | 14% | YES | 2-8 | L43 |
Ordering information
| Packing | Inner diameter (mm) | 2.1 | 2.1 [PS inert*] | 3.0 | 4.6 |
|---|---|---|---|---|---|
| Length (mm) | Catalog no. | Catalog no. | Catalog no. | Catalog no. | |
| SunBridge PFP-R 3 μm | 50 | IU-JV2941 | IU-JV294PS | IU-JV2341 | IU-JV2441 |
| 100 | IU-JV2961 | IU-JV296PS | IU-JV2361 | IU-JV2461 | |
| 150 | IU-JV2971 | IU-JV297PS | IU-JV2371 | IU-JV2471 | |
| 250 | IU-JV2981 | — | IU-JV2381 | IU-JV2481 |
PS inert is an inert column hardware option with a special surface that reduces metal adsorption (standard type: stainless steel).
| Related Products | Product Name | Catalog no. |
| Delay column for PFAS** | SunBridge Delay C18 5 μm 3 mm I.D. x 50 mm L | IU-JB3341NR |
