IDEX RefractoMax RI Detector – Unlock Effortless Precision

The handling of our IDEX RefractoMax RI Detectors is easy, as users can quickly assess working conditions on the colored display screen. Complex processes, such as changing the eluent in the reference cell, can be automated via the start-up button. Additionally, simple instrument validation and calibration are facilitated through the “HELP” function.

A stable baseline is attained in the shortest possible time through the optimization of temperature control and thermal isolation. The RefractoMax demonstrates a superior signal-to-noise ratio due to its baseline stability. Even during extended analysis times, minimal drift is observed. The detector is equipped with a leak sensor, automatically switching off the pump for added safety

External inlet and outlet ports enable seamless communication with various chromatography systems. The IDEX RefractoMax RI is available in three flow rate options.

RefractoMax Micro: flow rates: 0.1 – 1 mL/min

RefractoMax Analytical: flow rates: 1 – 5 mL/min

RefractoMax Semi-Prep: flow rates: 1 – 50 mL/min

Key features:
simple handling
accurately tempered
measuring cell
high sensitivity
safety features
various automated functions

RefractoMax Specs: Click Here

MORE on REFRACTOMAX  RI DETECTORS

IDEX REFRACTOMAX 521 RI DETECTOR ANALYTICAL
RefractoMax521

The RefractoMax analytical is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 1 – 5 ml/min. Delivery includes a 8 µl flow cell.

IDEX REFRACTOMAX 522 RI DETECTOR SEMI-PREP
RefractoMax522

The RefractoMax Semi-Prep is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 1 – 50 ml/min. Delivery includes a 8 µl flow cell.

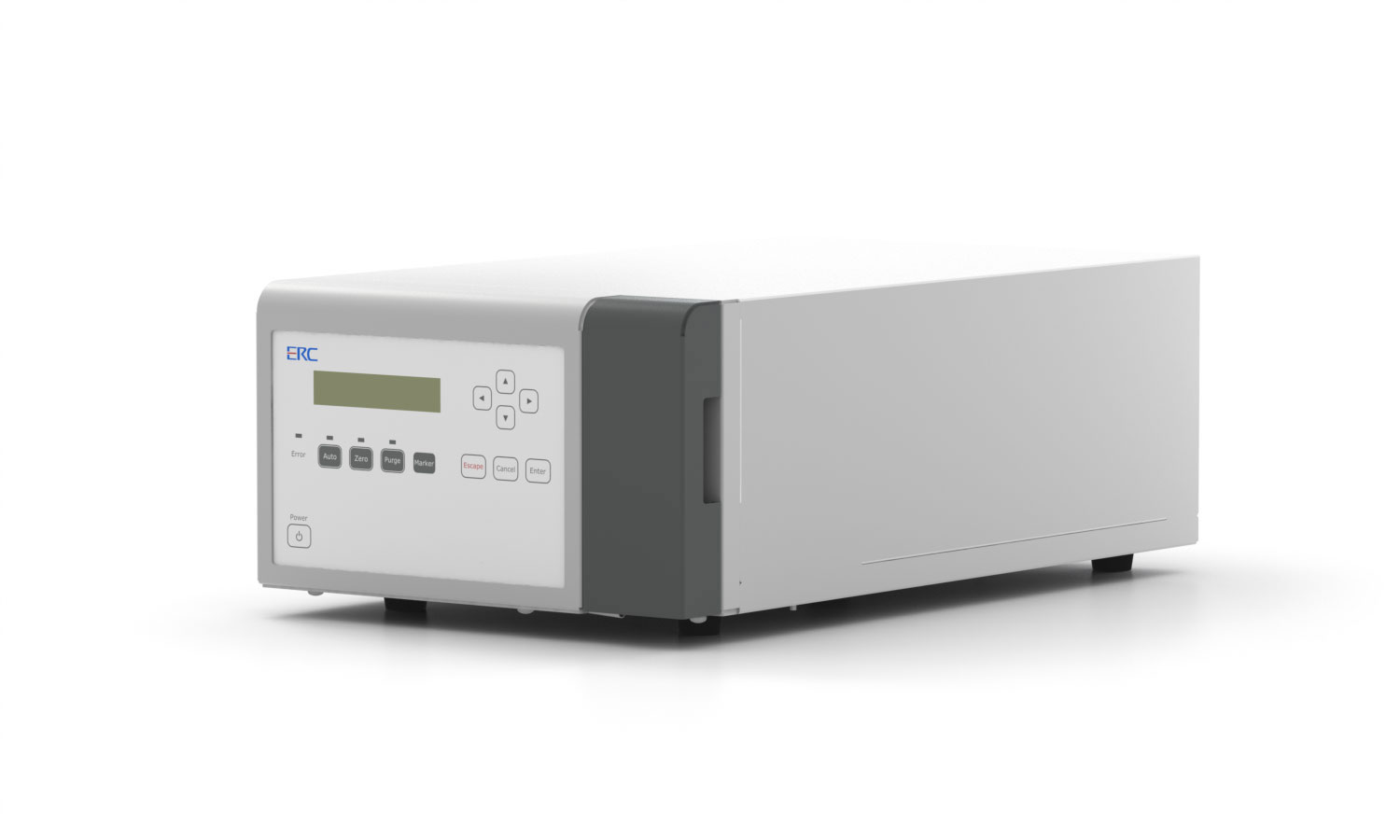

IDEX REFRACTOMAX 524 RI DETECTOR MICRO
RefractoMax524

The RefractoMax Micro is a sensitive refractive index detector suitable for detecting compounds with little or no UV activity such as sugars, lipids or polymers. The instrument is designed for use in analytical HPLC with flow rates of 0.1 – 1 ml/min. Delivery includes a 2.5 µl flow cell.
